Description

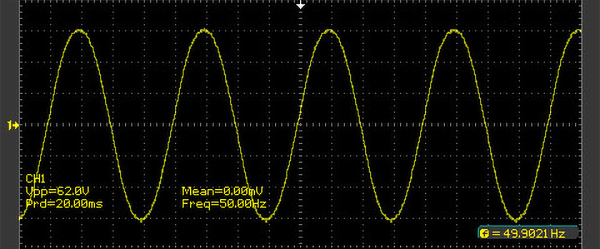

The BLUETTI AC200MAX modular station is equipped with powerful LFP battery cells with a capacity of 2048 Wh and a 2200 W pure sine wave inverter. With two ports, it is possible to expand the station with two BLUETTI B230 battery modules (2048 Wh each) or B300 modules (3072 Wh each). The AC200MAX can receive up to 900 W from solar photovoltaic panels and up to 500 W from an AC outlet. When using both sources simultaneously, a charging power of 1400 W can be achieved, allowing the station to be charged in less than 2 hours. Connecting the modules also provides additional AC input ports and an additional 400 W of input power per module.
| Battery | |
| Capacity | 2048 Wh (36 V, 57.24 Ah) |
| Type | Lithium-ion |
| LifeCycles | 3500+ (up to 80%), 6000+ (up to 50%) |
| Management system | BMS, overvoltage protection, short circuit protection |
| Interface | |
| AC output | 230 V, 50 Hz, 2200 W (4400 W peak) |
| USB output | 2*5 V/3 A USB-A 2* 18W USB-A 1*100 W USB-C |
| DC output | 1*12 V/30 A Super DC A cigarette lighter port 2*12 V/10 A DC output 5521 |
| Wireless charging | 2*15 W wireless charging pads |
| Solar input power: 900 W (10-145 V) | max. 15 A |
| AC + solar input: | 1400 W max |
| Car | 11.5-14.5 V; 23-29 V, 7.9-8.4 A |
| Modularity and scalability | Expandable with 2B230 or 2B300 modules |
| General parameter | |
| Weigh | 28,1 кг |
| Dimensions (LxWxH) | 42 х 28 х 38,65 см |
| Operating temperature range | -20-40℃ |
| Certifications | CEC, DOE, FCC, QC3.0, CA Prop 65 |
| Warranty | 24 montha |
| Accessories | BLUETTI SP200 solar panel |
| Package contents | AC200Max power station, T400 AC adapter and cable, warranty card, user manual, PV charging cable (XT90-MC4), car charging cable (XT90), XT90 to aviation (spiral) cable, QC PASS certificate |
