Description

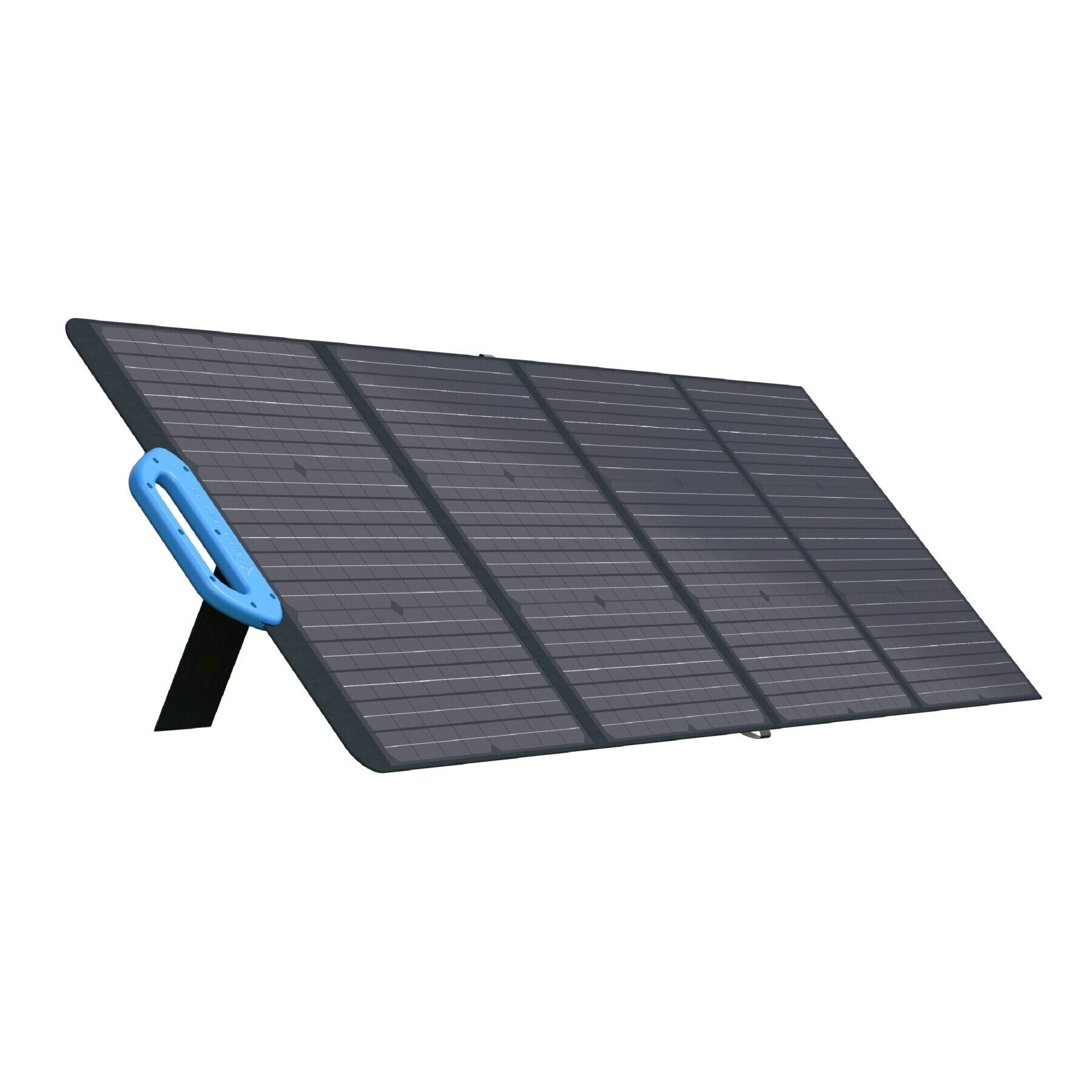

The BLUETTI 120W photovoltaic panel provides portable power stations with solar energy. Built with monocrystalline solar cells, PV120 can convert up to 23.4% of sunlight into energy, charging the power station even in poor weather conditions. The ETFE coating and IP65-rated distribution box are scratch-resistant and can withstand splashes of water.
Unfold the PV120, secure the stands, adjust the angle to maximize solar exposure, and solar energy will flow to the power stations (Charge time up to 80%*):
BLUETTI EB55 (537Wh) + PV120: charging time in 5 hours.
BLUETTI AC200P (2000Wh) + 2PV120: charging time in 8.5 hours.
BLUETTI AC200MAX (2048Wh) + 4PV120: charging time in 4.5 hours.
BLUETTI AC300 + B300 (3072Wh) + 8PV120: charging time in 3.5 hours.
BLUETTI EP500 (5120Wh) + 6PV120: charging time in 7.5 hours.
| Power: | |
| Power | 120 W |
| Coating | ETFE (Ethylene tetrafluoroethylene) |
| Element type: | Monocrystalline silicon |
| Element Efficiency | Up to 23.4% |
| Maximum Power Voltage (Vmp) | 19,6 V |
| Maximum Power Current (Imp) | 6,1 A |
| Open Circuit Voltage (OCV) | 24,4 V |
| Short Circuit Current (Isc) | 6,43 A |
| Main Parameters: | |
| Weight | 5,7 kg |
| Dimensions (unfolded) | 53,3 x 165,2 cm |
| Dimensions (folded) | 53,3 x 47 cm |
| Operating Temperature Range | -10-65℃ |
| Optimal Operating Temperature | 25℃ |
| Warranty | 24 months |
| Package: | |
| Product: | Quantity |
| Foldable BLUETTI PV120 solar panel | 1 |
| User manual | 1 |
